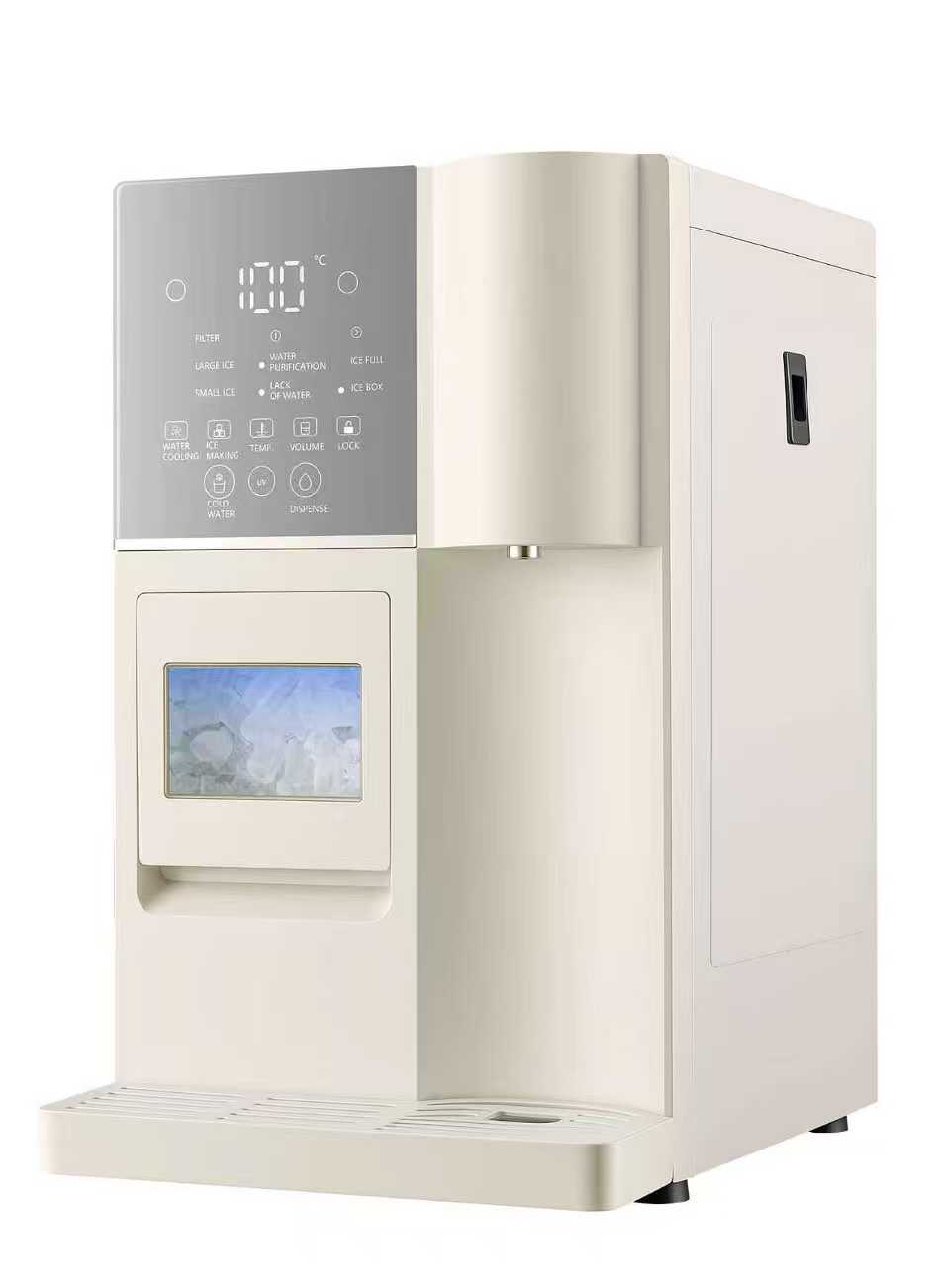

All-in-One RO Water Dispenser with Ice Maker

Powerful Performance Parameters

- Rated Voltage & Frequency: 220V, 50Hz

- Total Rated Power: 2300W; Heating Power: 2200W; Cooling Power: 100W; Water Producing Power: 28W

- Hot Water Output: 20L/h (water temperature ≥90℃)

- Cold Water Output: 3L/h (water temperature ≤10℃)

- Ice Production Capacity: 10kg per 24 hours, supports large/small bullet ice modes

- Working Environment: Ambient temperature 10℃-38℃, relative humidity ≤90%

- Inlet Tap Water Pressure: 0.1–0.4MPa

- Standby Power Consumption: ≤1.5 kWh per 24 hours

- Protection Class: Class I anti-electric shock protection

- Water Source: Municipal tap water

Core Configuration & Humanized Settings

1. Adjustable Water Temperature & Volume

5 temperature gears for customized hot water: 25℃ / 45℃ / 65℃ / 85℃ / 100℃ with 3-second instant hot water output; independent cold water circuit provides cold water ≤10℃.

4 optional water dispensing volumes: 180mL / 300mL / 500mL / 999mL to meet drinking, tea-making, coffee brewing and soup needs.

2. Dual-Stage Rapid Filter System

Adopts PPC composite filter + 75G RO membrane with booster pump, quick-connect cartridge design for easy replacement via side door without professional tools. The RO system efficiently filters heavy metals, residual chlorine, bacteria and impurities from tap water, with purified water flow ≥11.8L/h and rated total clean water capacity up to 2000L.

3. 2L UV Self-Sterilizing Water Tank

Large food-grade PP internal water tank with automatic UV sterilization function to inhibit bacterial growth and keep stored purified water fresh. All water pipes use food-grade materials to prevent peculiar odor, extend service life and guarantee drinking safety.

Full-Automatic Multi-Safety Functions

1. Independent control modules for heating, cooling, ice making and UV sterilization, separate cold & hot water circuits to avoid temperature interference.

2. Dry-burning prevention protection cuts off heating automatically without water, improving operation safety.

3. Side door split water-electric structure isolates water and electric components to reduce leakage risks.

4. Fully automatic operation: water production, refrigeration, ice making, instant heating, water shortage reminder, automatic flushing and full water stop, no manual operation required.

5. Multiple intelligent sensors: ice full reminder, filter service reminder, child lock function to prevent scalding by kids.

Product Advantages

✅ 4-in-1 all functions: RO purification + instant hot + compressor cold + bullet ice making

✅ 3-second fast hot water, no long waiting

✅ Independent compressor refrigeration for stable low-temperature cold water

✅ Dual-stage quick-replace filters, easy maintenance

✅ Automatic UV tank sterilization for long-term water freshness

✅ Water-electric separation design & multiple safety protection systems

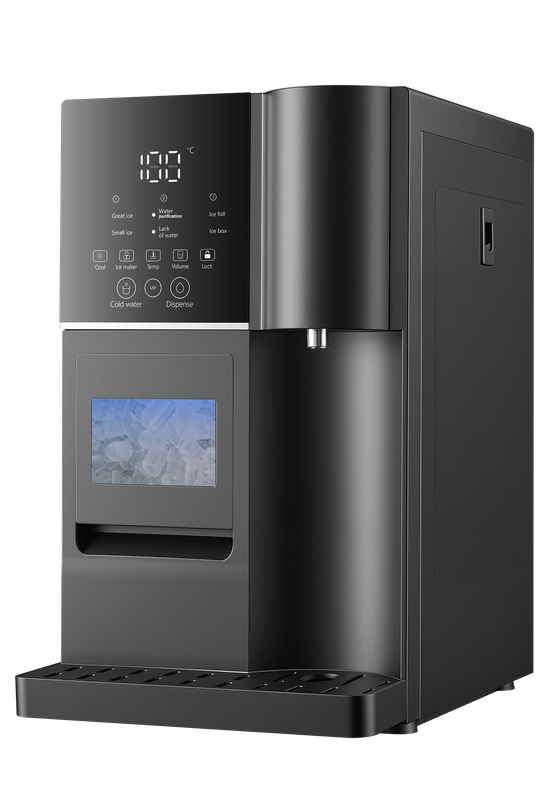

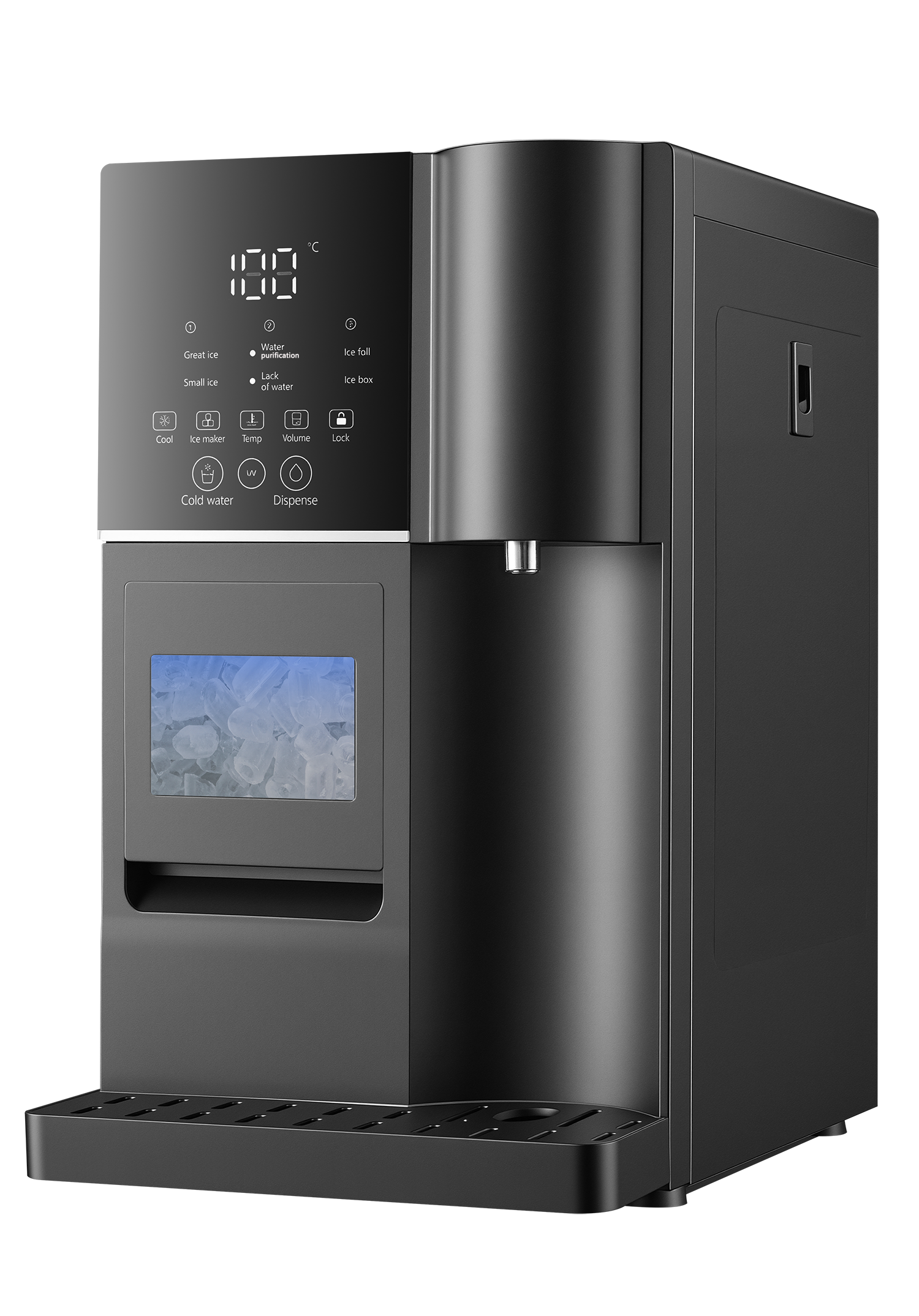

✅ Two color options for home, office, apartment and small catering use

✅ Compact countertop size, no complicated installation required
